KSX2000.305X153

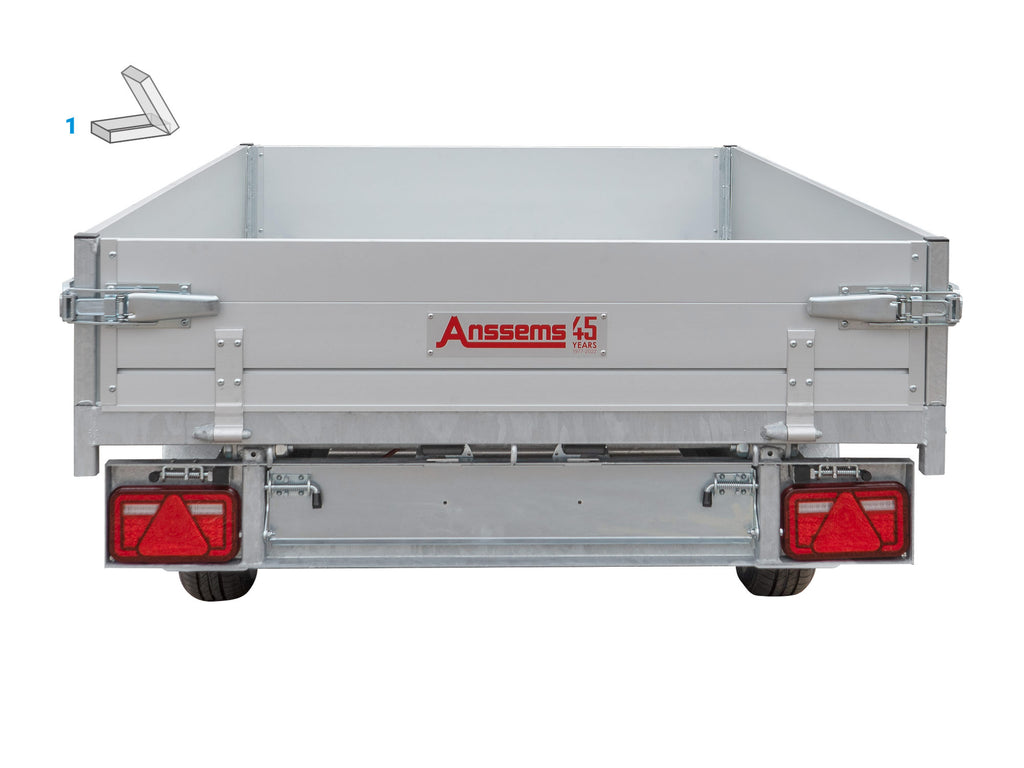

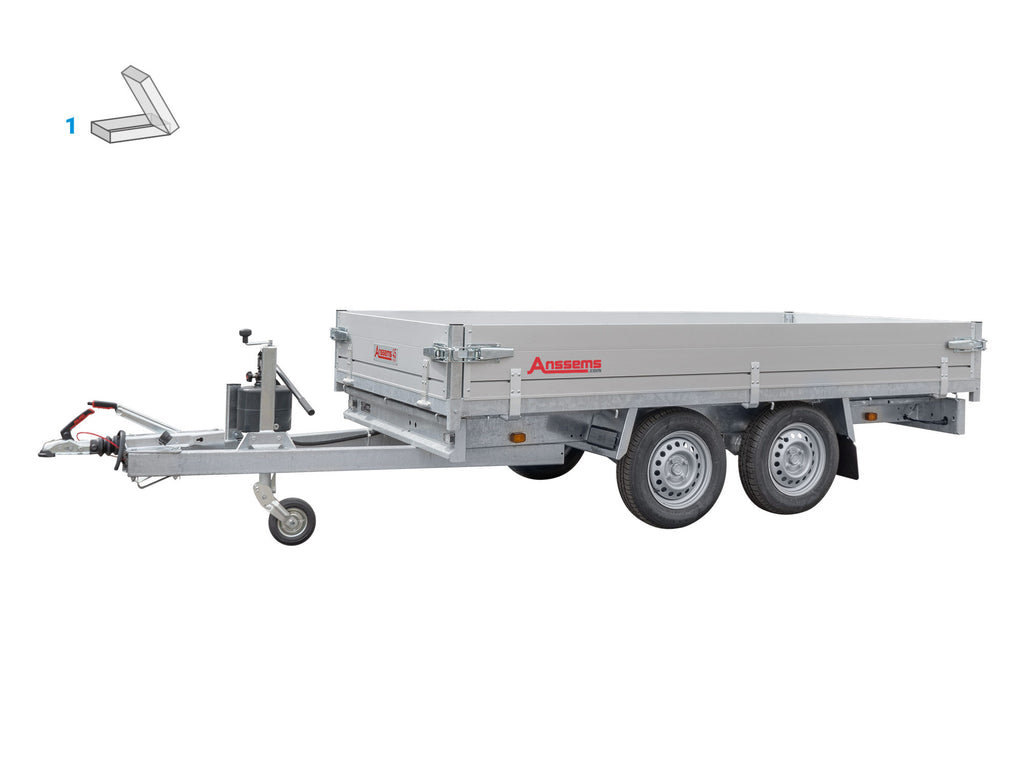

Rear tipper type KSX2000.305X153

Permissible gross weight: 2,000 kg

Payload approx. 1,355 kg

Internal dimensions approx. 3,050 x 1,530 x 300 (L x W x H in mm)

Tires 13", loading height approx. 650mm

***************

- integrated ramp shaft (without ramps)

- continuous steel floor without wooden substructure

- reinforced automatic support wheel mounted in the center

- welded frame construction, therefore very high stability and torsional rigidity

- Hot-dip galvanized chassis with reinforced longitudinal beams

- Aluminum side panels with eccentric tension locks, 4 sides foldable and removable

- Corner posts pluggable

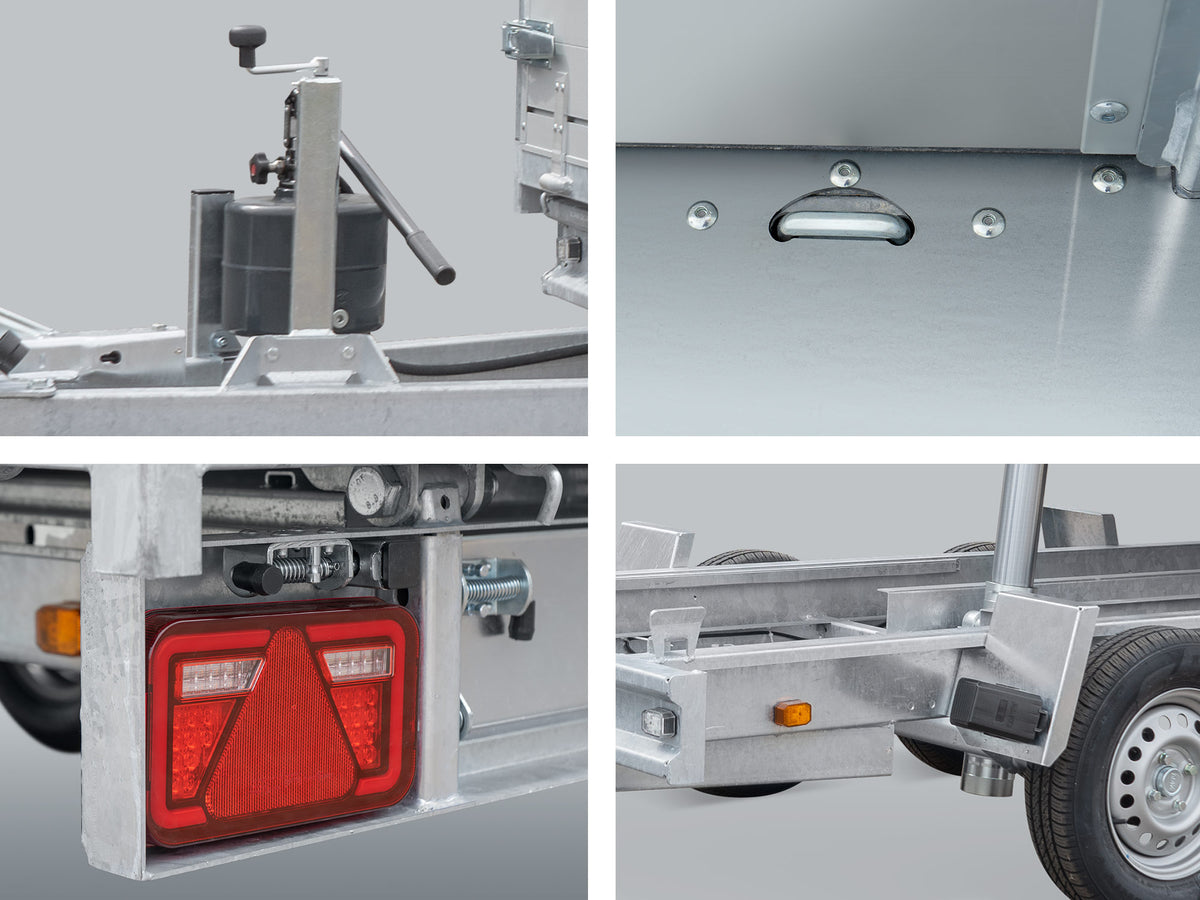

- Hand hydraulics

- 4-stage, hard-chromed tilting cylinder

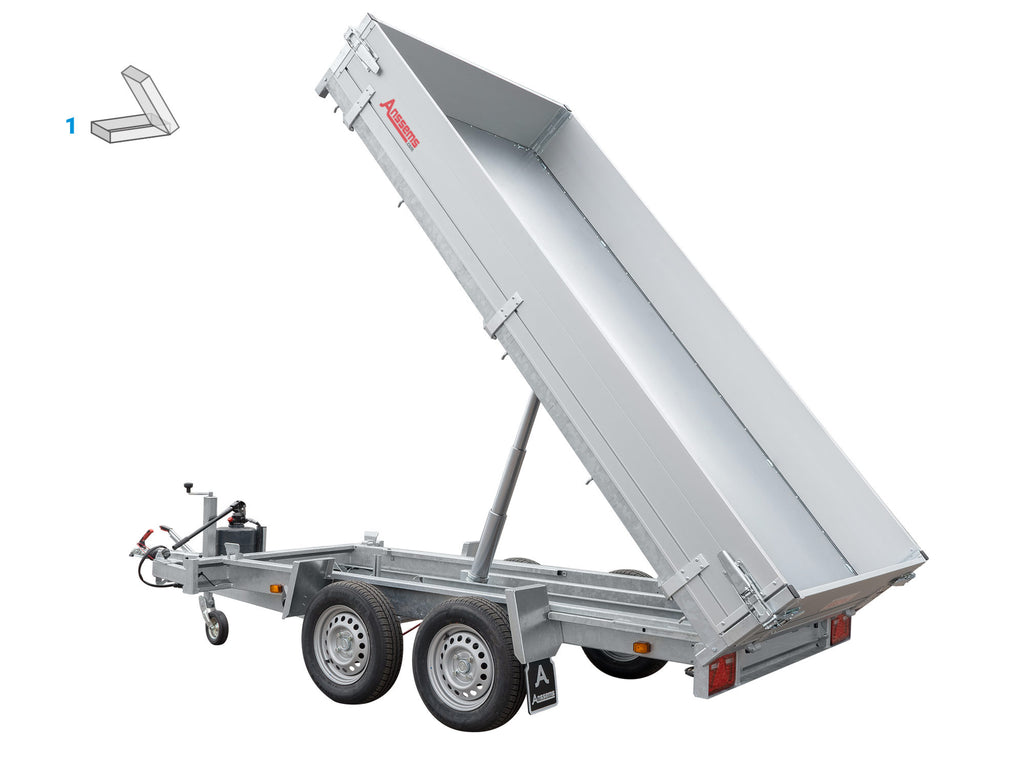

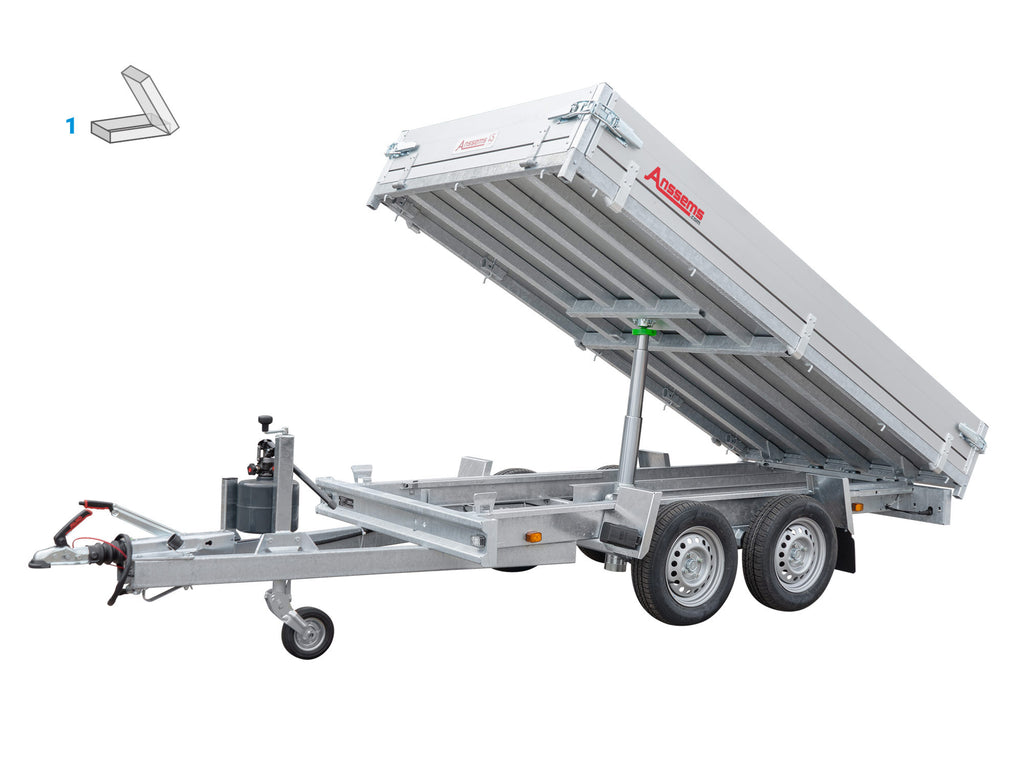

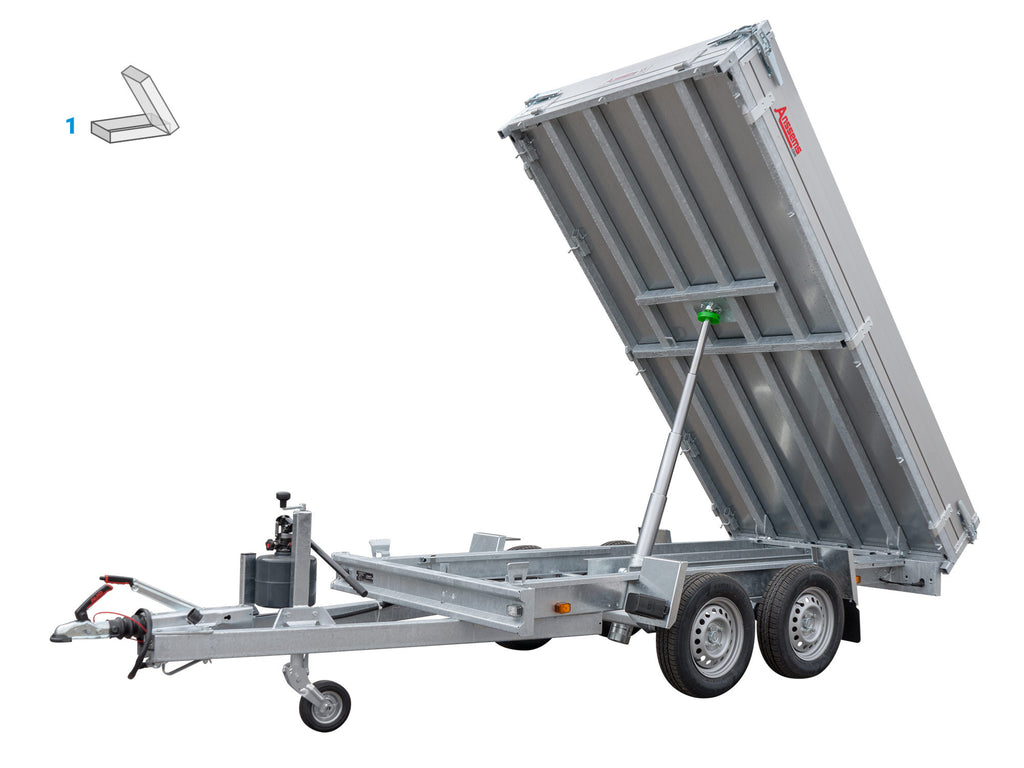

- Tilt angle up to 49 degrees

- EURO wiring harness with 13-pin connector and reversing lights
