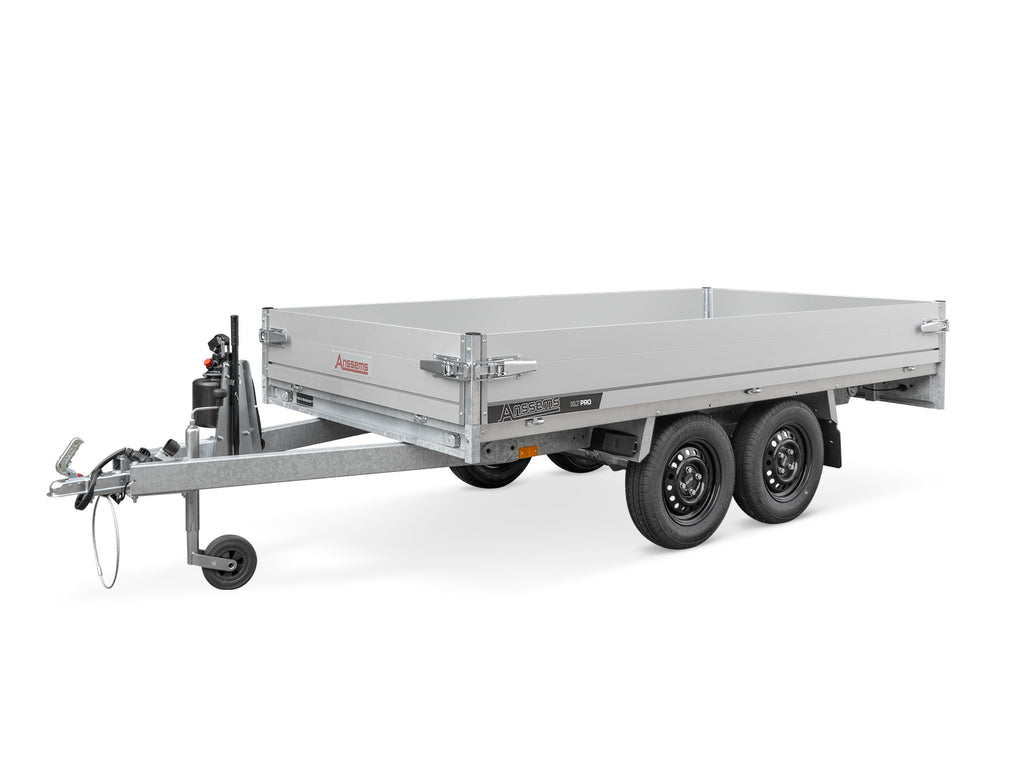

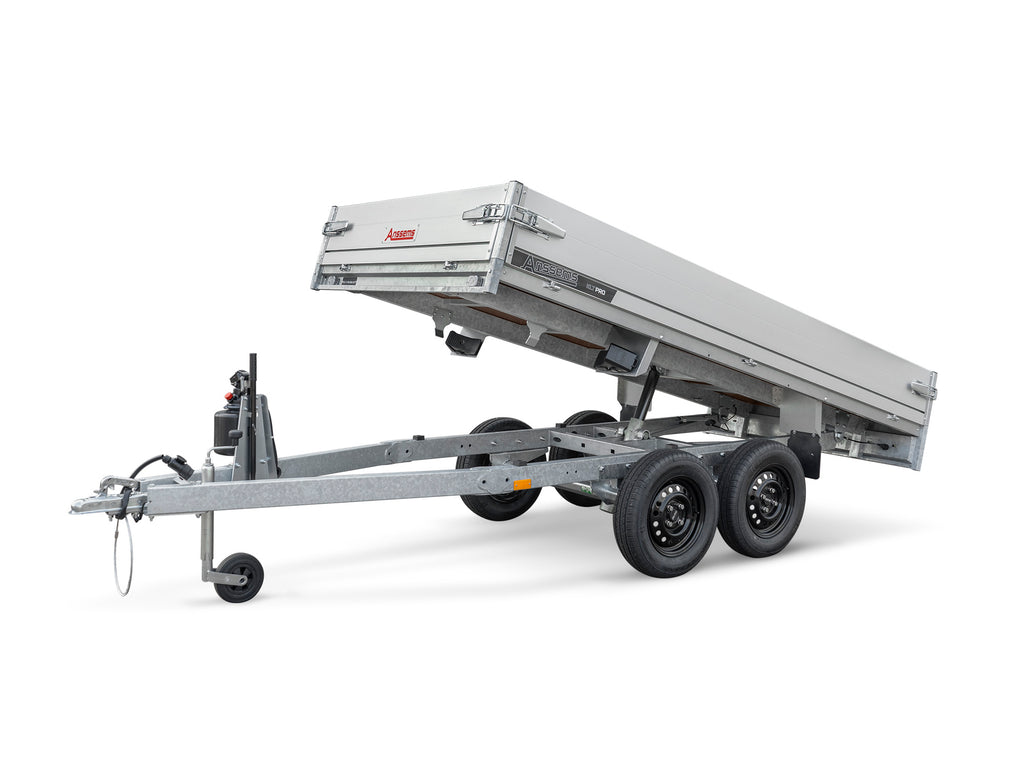

KLT-2 750.305×150 PRO

Tandem rear tipper type KLT-2 750.305×150 PRO

unchecked

Permissible total weight: 750 kg

Payload: 372 kg

Internal dimensions approx. 3,050 x 1,500 x 300 (L x W x H in mm)

Total dimensions approx. 4,360 x 1,600 x 1,010 (LxWxH in mm)

Tires 13", loading height approx. 670mm

***************

- Floor made of screen printing covered with sheet steel

- welded frame construction, therefore very high stability and torsional rigidity

- Hot-dip galvanized chassis with reinforced longitudinal beams

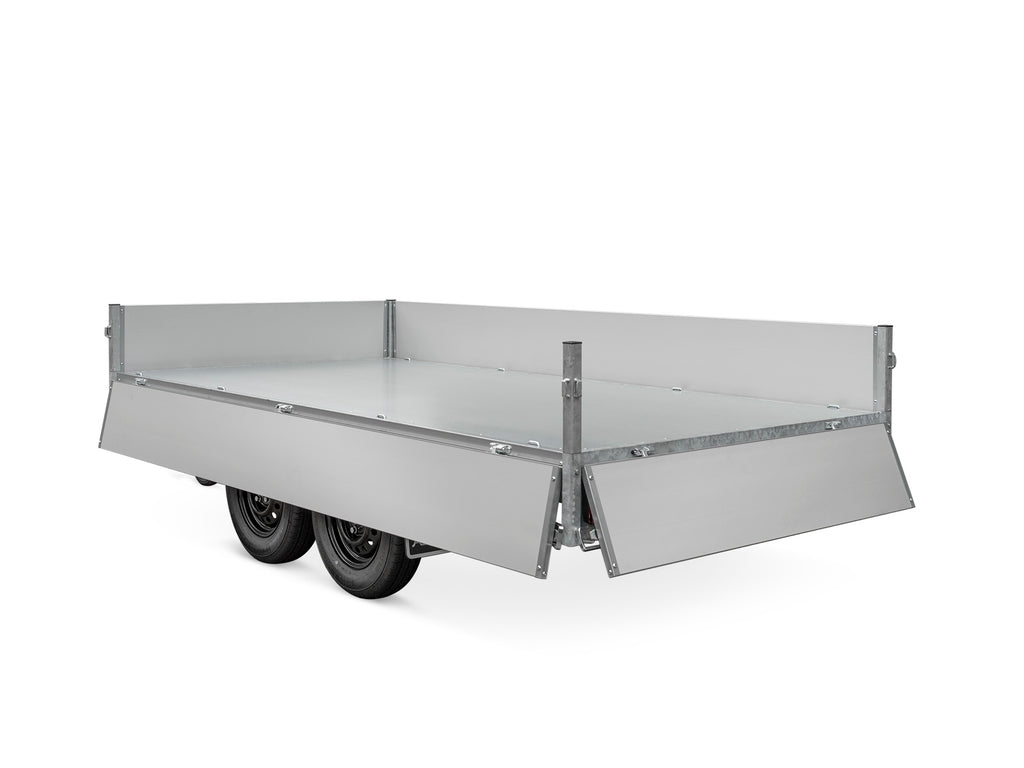

- Aluminum side panels with eccentric tension locks, 4 sides foldable and removable

- Corner posts pluggable

- Hand hydraulics

- 2-stage, hard-chromed tilting cylinder

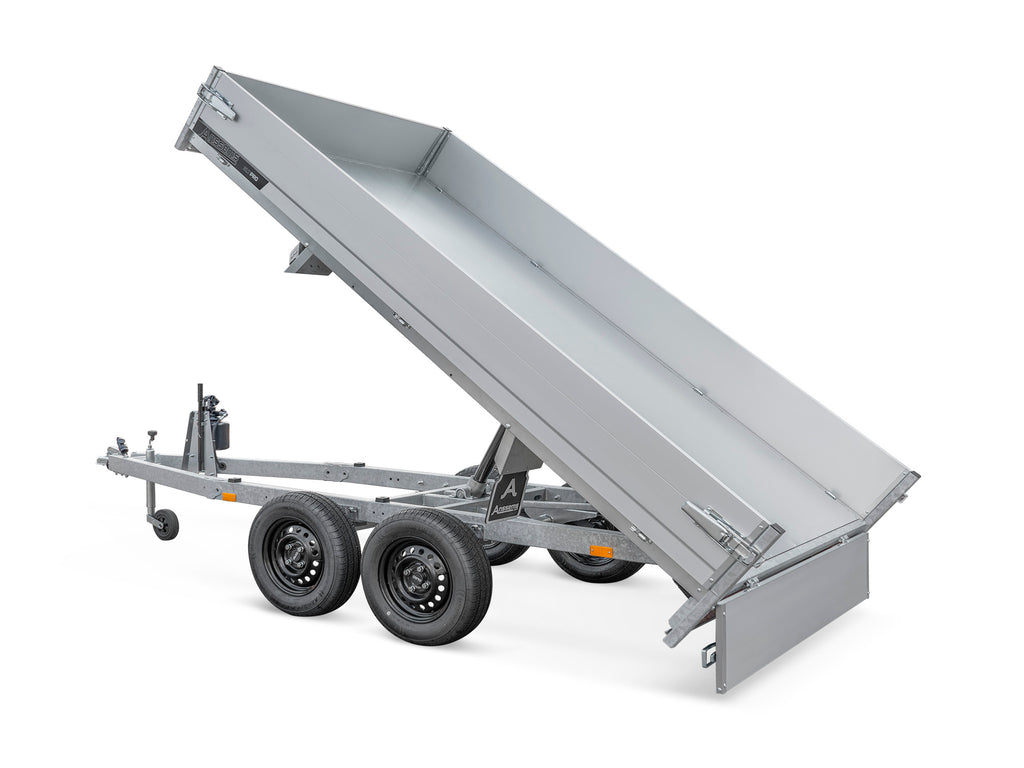

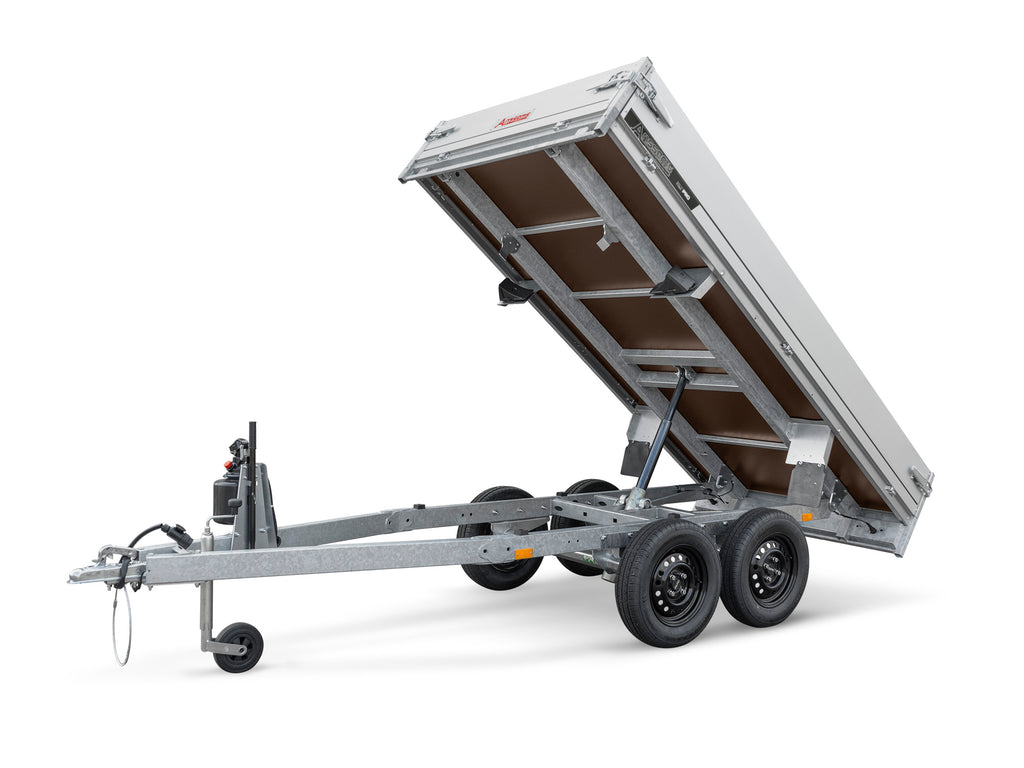

- Tilt angle up to 49 degrees

- Automatic support wheel mounted in the center

- EURO wiring harness with 13-pin connector and reversing lights
