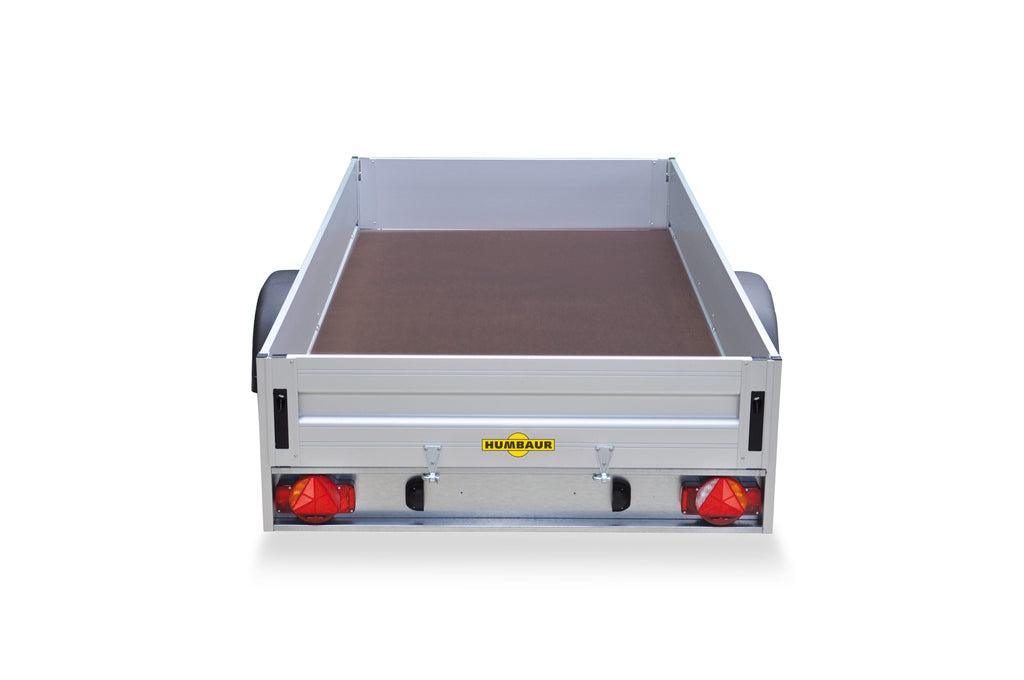

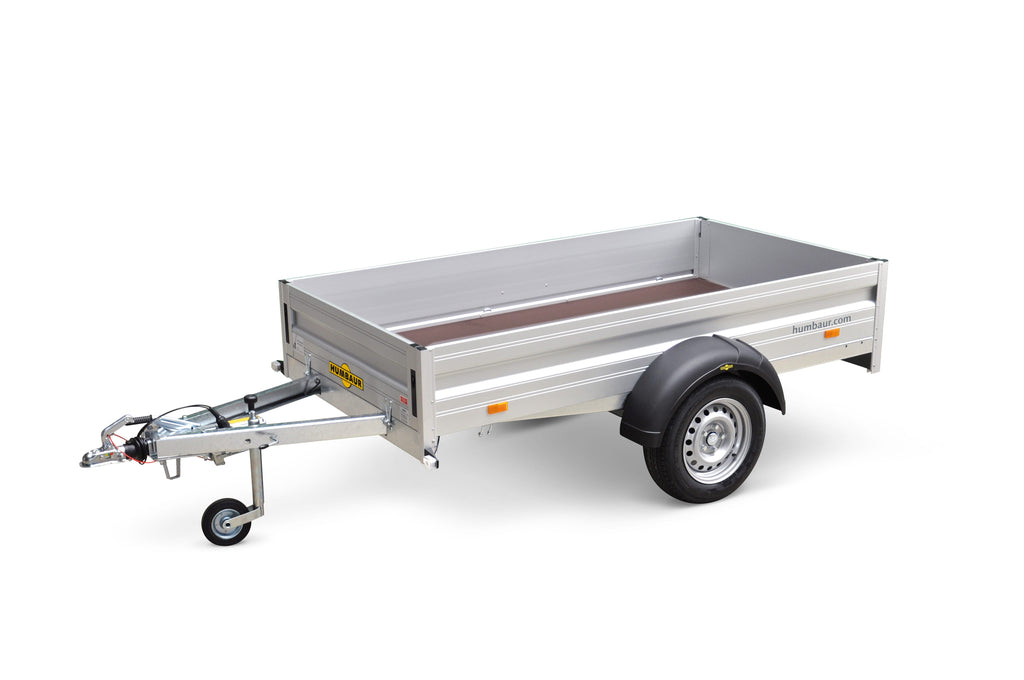

HA132513 BK

1-axle low loader type HA132513 BK

Permissible total weight: 1,300 kg

Payload approx. 1,037 kg

Internal dimensions approx. 2,519 x 1,310 x 350 (L x W x H in mm)

14-inch tires, loading height approx. 540 mm

Standard equipment

V-drawbar, hot-dip galvanized

13-pin connector, reversing light from 751 kg permissible total weight

Base plate 15 mm thick

Sideboards made of anodized, double-walled aluminum

Flap with recessed latches

Six lashing rings integrated into the side walls, tensile strength 400 kg per lashing ring, Dekra tested

Bridge with shock absorber for tilting

Rear tilt angle of 18°

Reinforced tailgate and reinforced underride protection on the HA132513 up to max. 500 kg

Humbaur multifunctional lighting integrated into the underride guard

Corner posts with insertion option
