BSX750.205X120

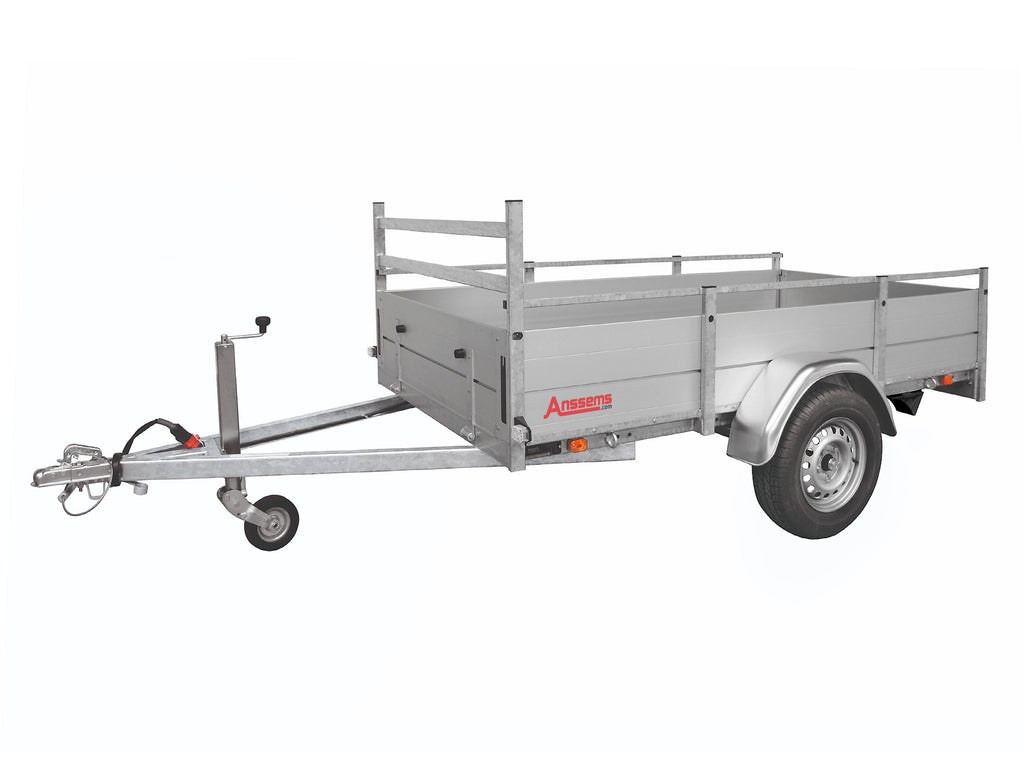

Single-axle low loader type BSX750.205X120

Permissible total weight: 750 kg

Payload approx. 545kg

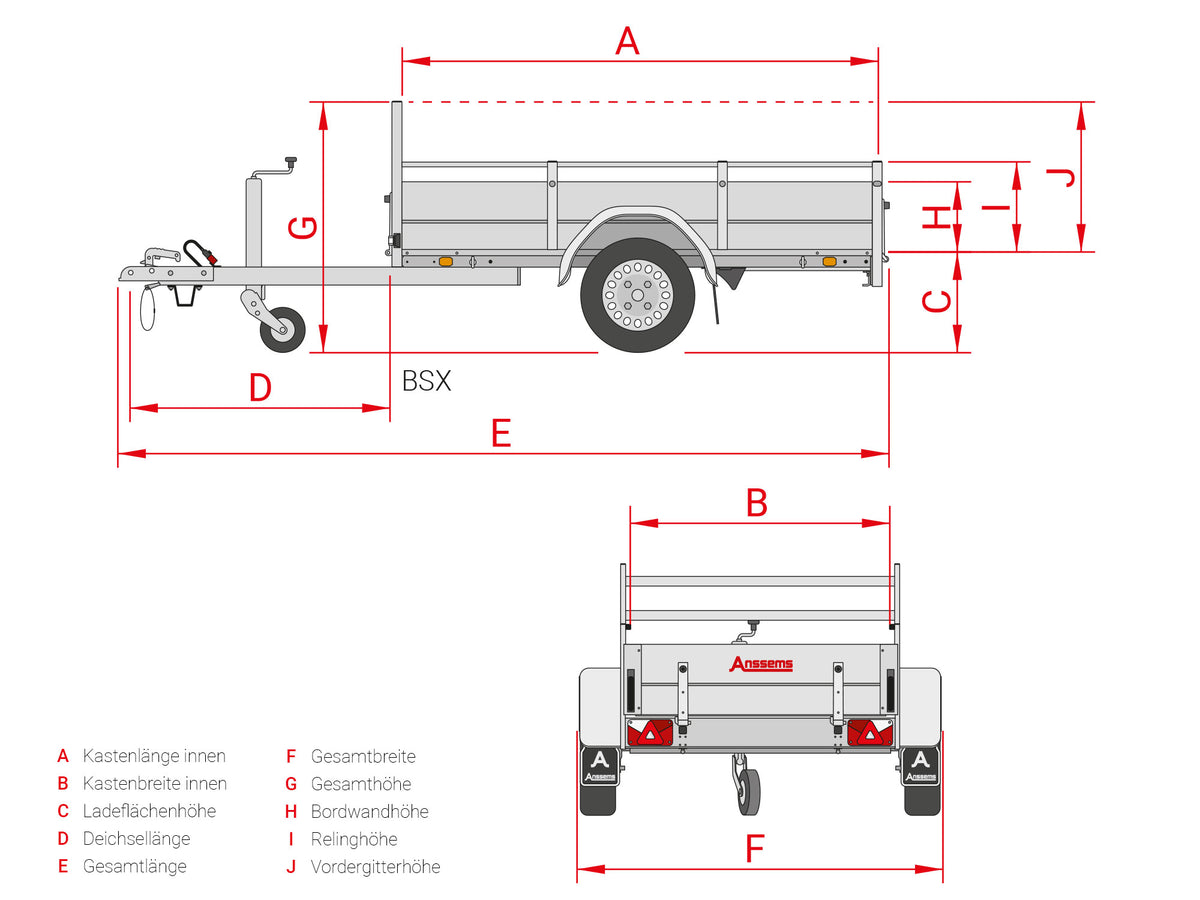

Internal dimensions approx. 2,050 x 1,200 x 350 [530 with railing] (L x W x H in mm)

Total dimensions approx. 3,510 x 1,660 x 1,280 (LxWxH in mm)

***************

- H-frame (welded)

- Railing (welded)

- unchecked

- Side walls made of double-walled, 25mm thick aluminum profiles

- Rear and front flaps with built-in latches

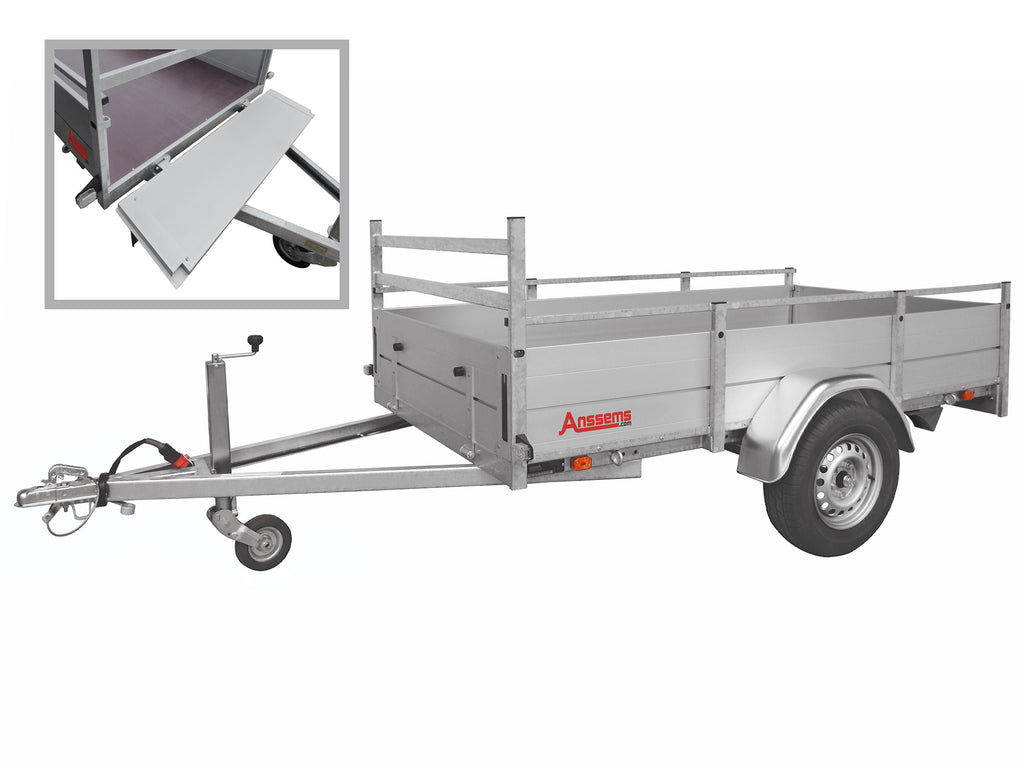

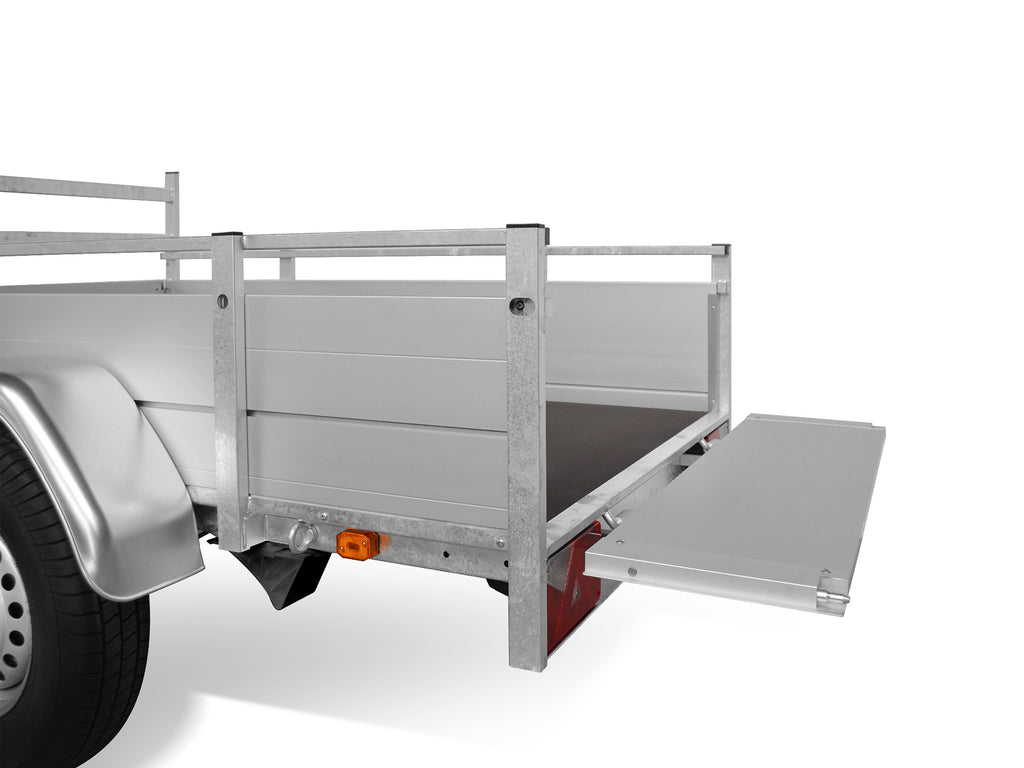

- Rear flap with extendable flap support

- Reinforced automatic support wheel, centrally mounted

- Integrated lashing rail, T-slot for retrofitting screw eyes

- 4 tie rings on the outside

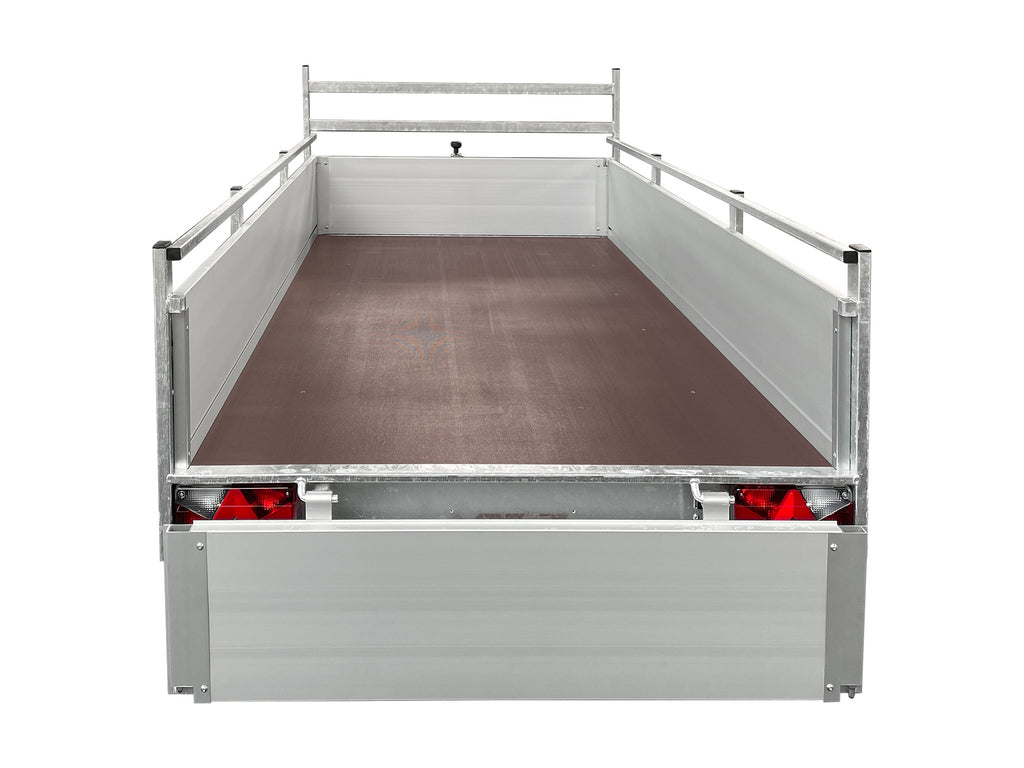

- Floor made of screen printing

- Euro wiring harness with 13-pin connector and reversing lights

- hot-dip galvanized chassis
