MEDAX-3 3500.405X223

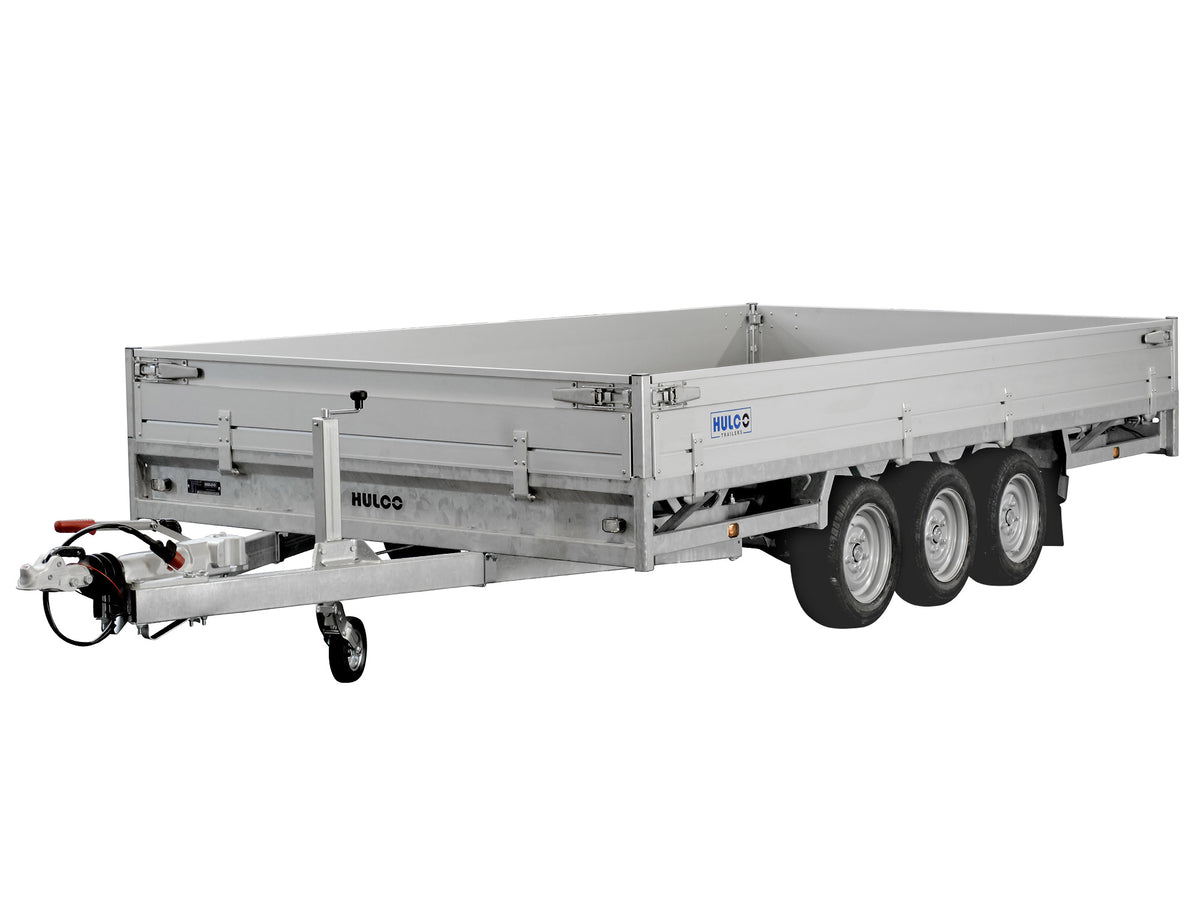

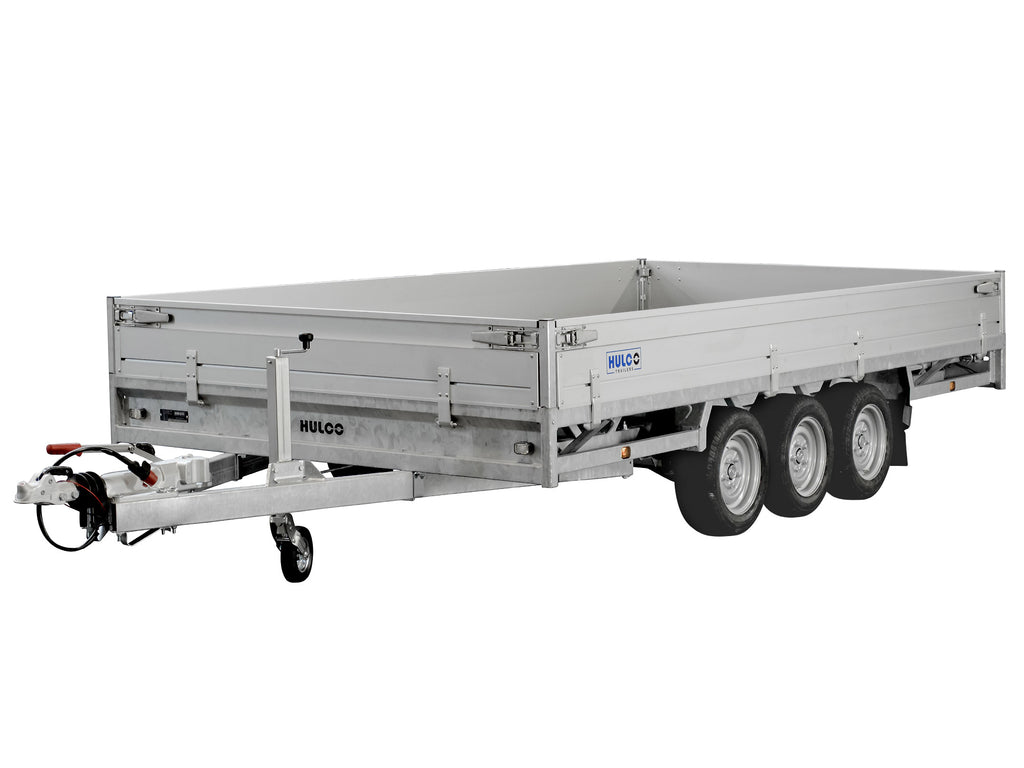

Tridem flatbed trailer type MEDAX-3 3500.405X223

Permissible gross weight: 3,500 kg

Payload approx. 2,720 kg

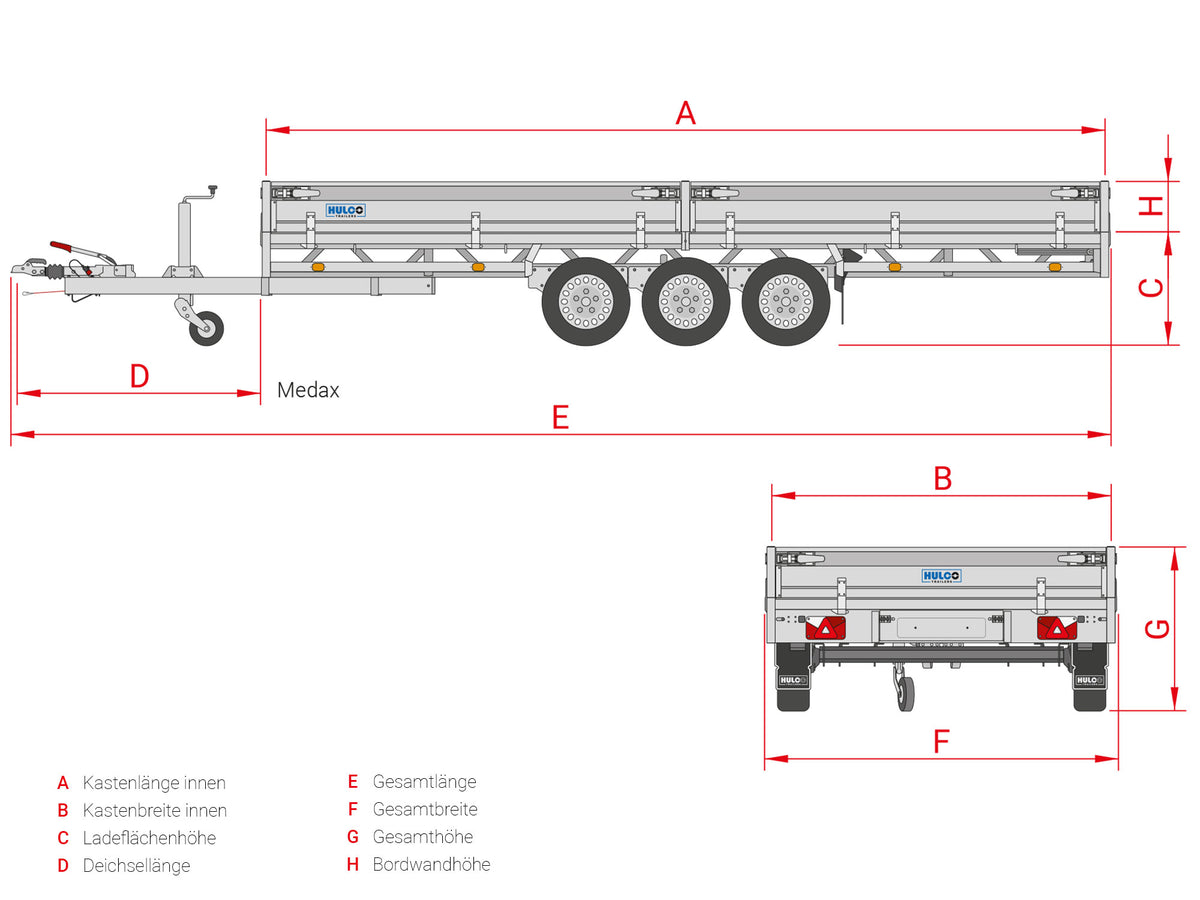

Internal dimensions approx. 4,050 x 2,230 x 300 (L x W x H in mm)

Total dimensions approx. 5,600 x 2,300 x 980 (LxWxH in mm)

Tires 12", loading height approx. 680mm

***************

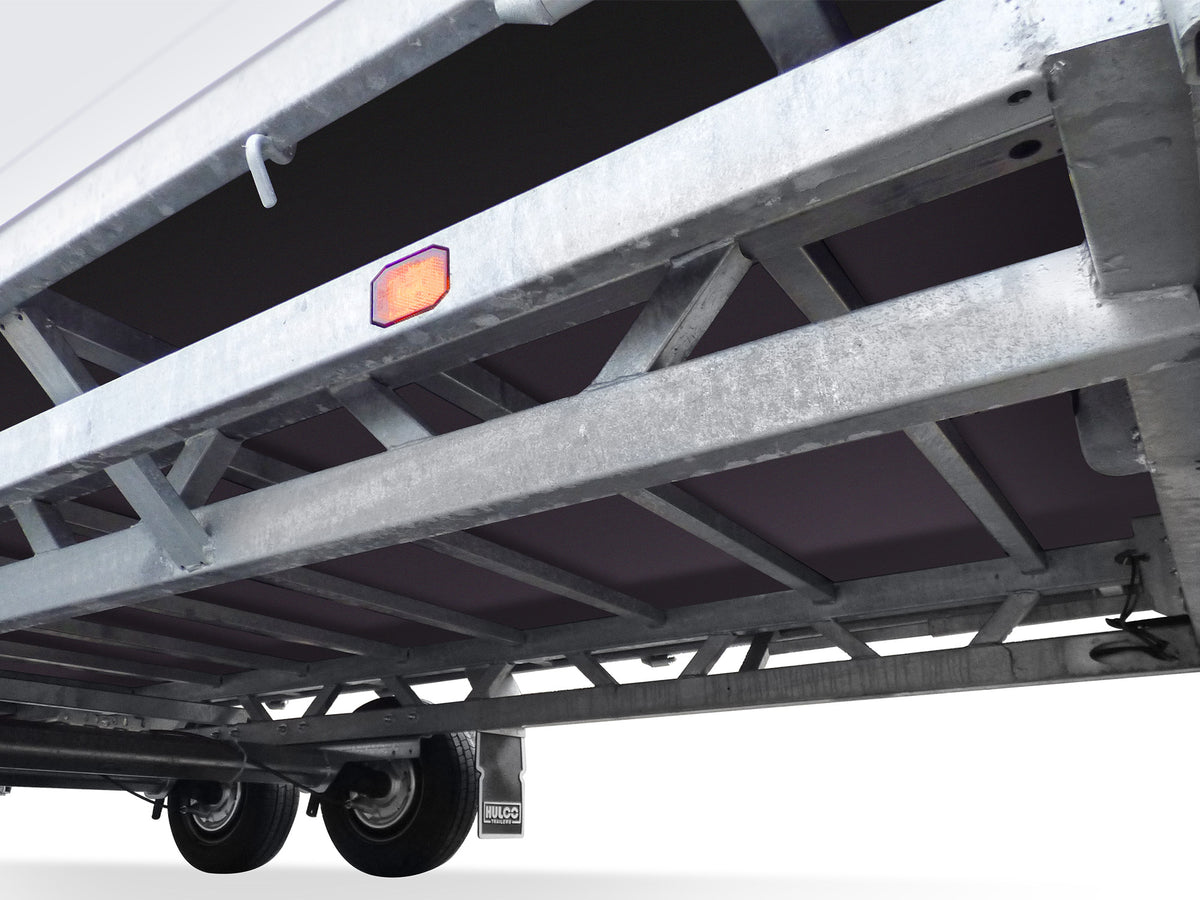

- V-drawbars and longitudinal beams throughout, hot-dip galvanized

- Automatic support wheel, centrally mounted

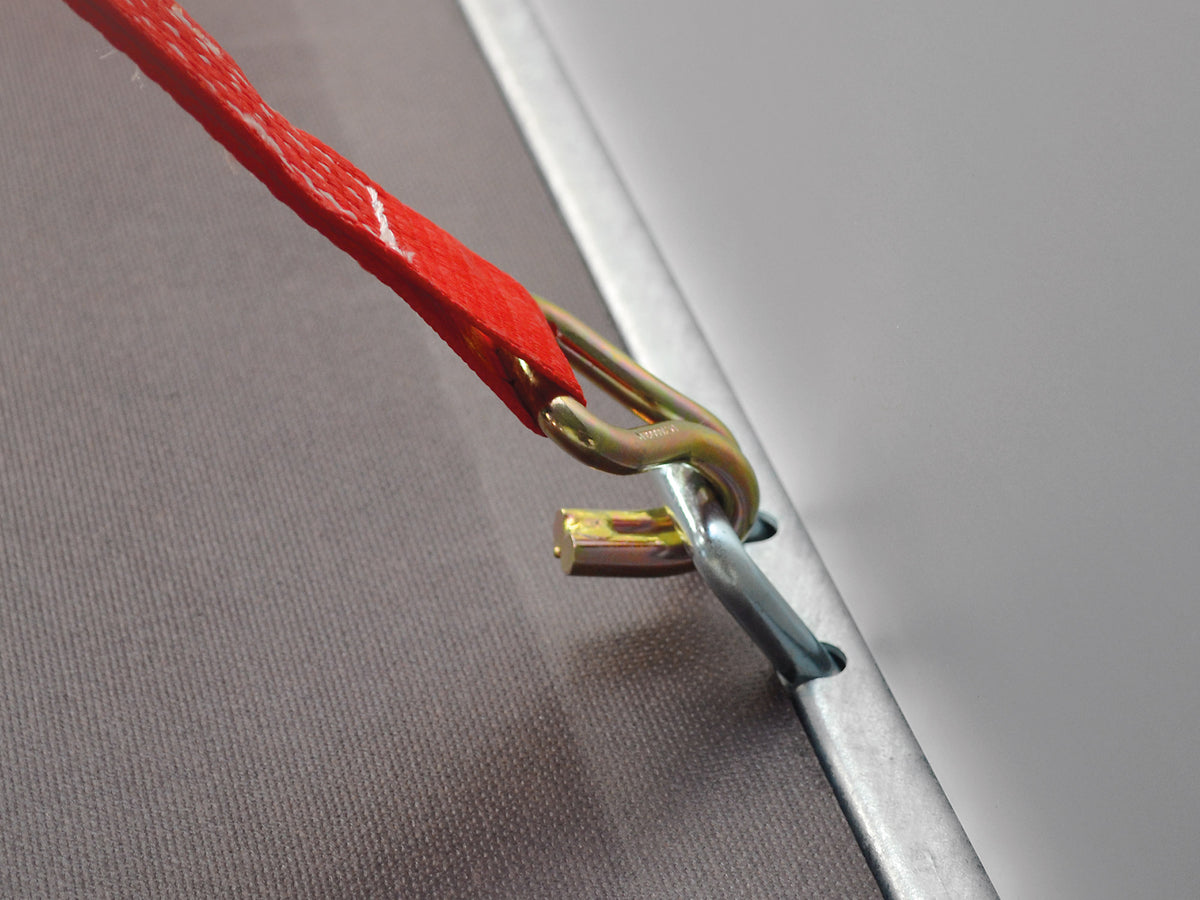

- Integrated lashing system with 8 tie-down rings according to DIN

- Double-walled, 25mm thick aluminum side panels, foldable and removable

- 4 pages that can be folded down and detached

- Corner posts pluggable

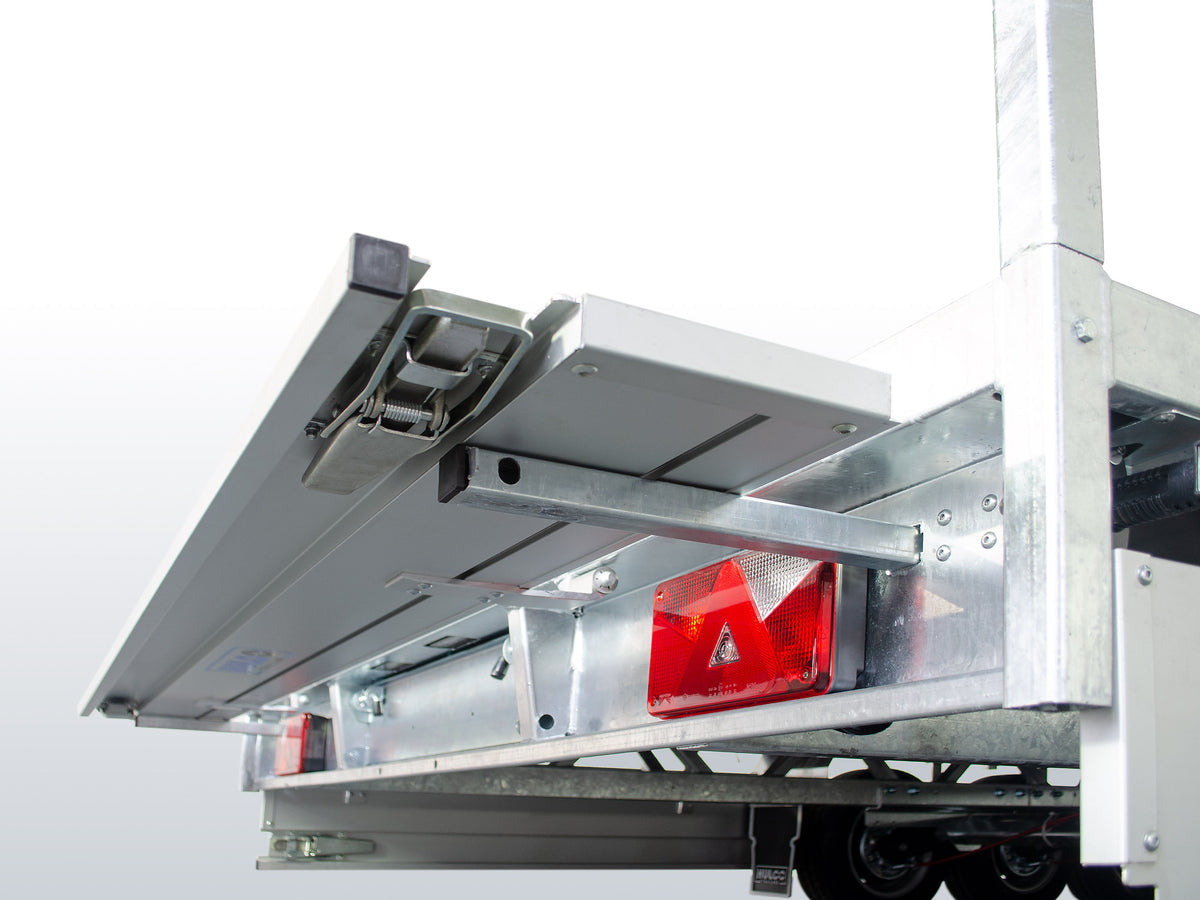

- Extendable support tubes at the rear for storing the rear wall

- Eccentric closures

- Floor made of screen printing

- EURO wiring harness with 13-pin connector
